LED Linear light

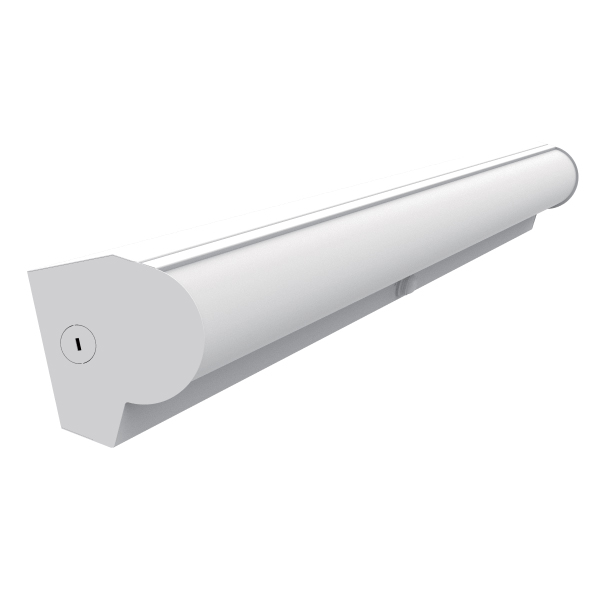

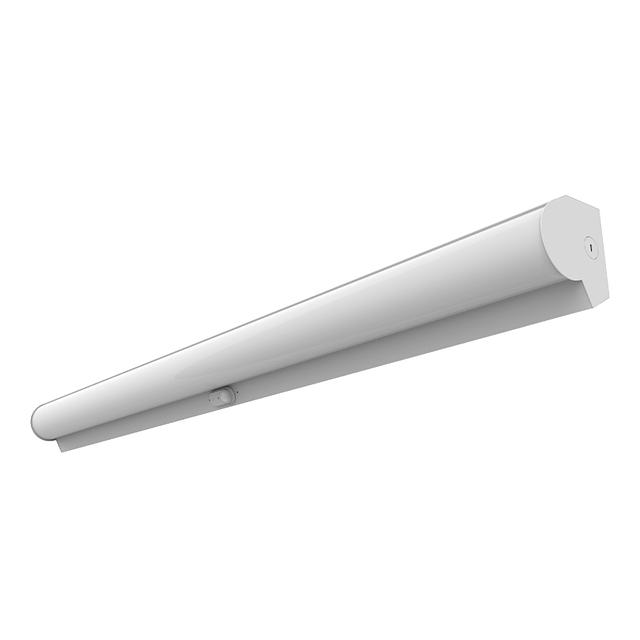

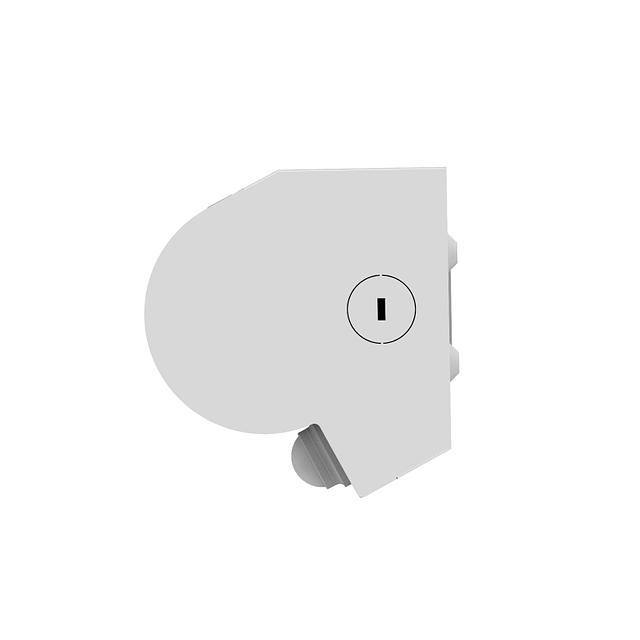

This linear LED stairwell fixture provides uniform, glare-controlled illumination for stairwells and corridors. Featuring field-selectable wattage and CCT, it allows on-site customization for optimal brightness and color temperature while reducing inventory requirements. An integrated motion sensor enhances energy savings by automatically adjusting operation based on occupancy. Its slim, durable design ensures reliable performance for both new construction and retrofit applications.Â
Resources
Housing: SPCC (Steel Plate Cold Commercial). Cold-rolled mild steel with a smooth surface, good formability, and tight thickness tolerance.
Low glare PC lens.
Lumen output from 2,250-6,750lm with efficacy up to 150lm/W.
Wattage Selectable: 2FT (15/20/36W) and 4FT (20/35/45W).
Color Temperature options: 3500K/4000K/5000K
Voltage of 120-277VAC.
0-10V dimming standard for a dimming range of 100% to 5%.
Operating temperature is 5°C to 40°C(-13°F to 104°F).
Note: Operating with emergency battery temperature range: 5°C to 40°C (+40°F- +104°F).
Built-in PIR sensor.
Optional Emergency Battery.
