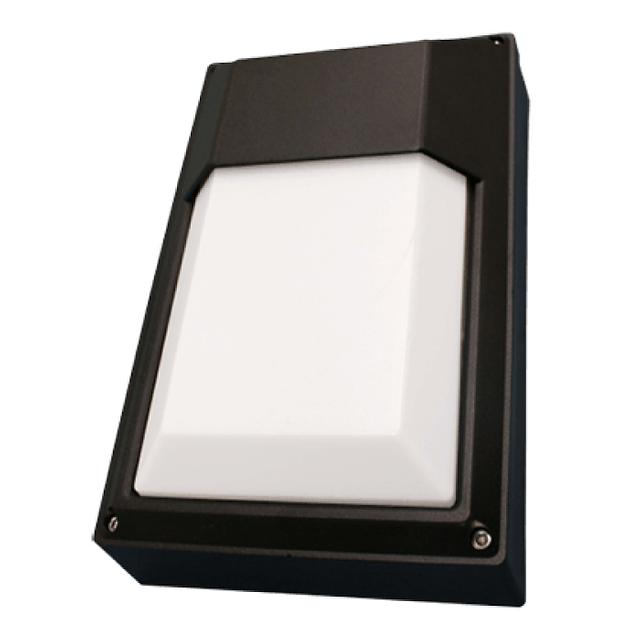

LCH-CCTS

LED Surface Mount Light

This LED surface-mount fixture offers field-selectable CCT, allowing on-site selection of 3000K, 4000K, or 5000K for versatile application. It includes an optional microwave sensor with tri-level dimming, an advanced motion detection system that adjusts light output in three stages: full brightness (100%) when motion is detected, a reduced dimmed level (30%) during standby, and off when no motion is present. An emergency battery backup is also available, but can only be selected if the microwave sensor is not used, and vice versa. Designed for durability, the fixture is IP65 rated for dust and water resistance and IK10 rated for high-impact protection, making it ideal for demanding indoor and outdoor environments.
Specification Sheet

Resources

  • Input Voltage : 120-277VAC
  • Power rating : 18 Watts
  • Fitting material Housing : Cast Aluminum, Lens: PC
  • CRI >80
  • Finish : White / Bronze / Black
  • Impact resistance : IK10
  • IP rating : IP65
  • Power Factor: ≥0.9
  • Operating Temp : -4ºF ~ 122ºF
  • Certificate : ETL
  • Standard : EN60598-2-1
  • Emergency : EN60598-2-22

Beam Angle

  • 30
  • 40
  • 50

CCT

  • 3000K
  • 4000K
  • 5000K

CRI

  • 80 CRI

Color / Finish

  • Black
  • Bronze

Controls Options

  • Motion Sensor

Dimensions

  • H: 11 In.

Dimming Protocol

  • 0-10 V

Façade Type

  • Surface

Lamp Source

  • LED
  • OLED
  • UV

Listings

  • ETL

Materials

  • Aluminum
  • Steel

Ratings & Compliance

  • IK10
  • IP65

Static LED Color

  • White

Voltage

  • 120-277 V

Watts

  • 18 w
