New Product

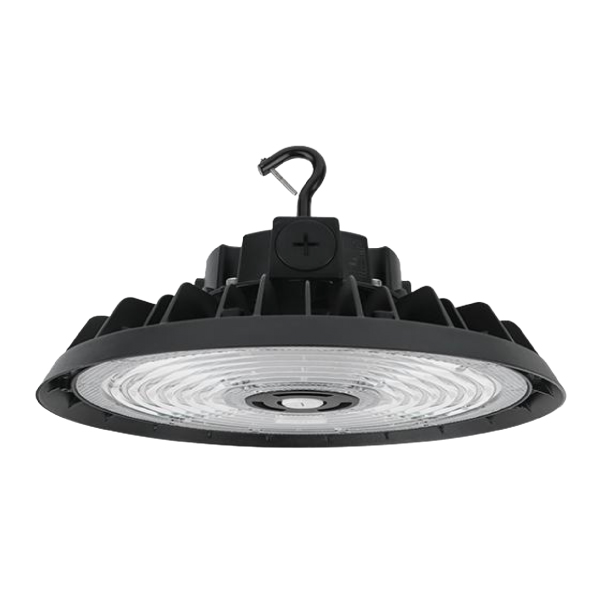

LED Round High Bay
The YHB High Bay is a flexible and efficient lighting solution available in three sizes to suit a wide range of applications. It features built-in lumen and CCT selectability, allowing you to customize light output and color temperature from a single fixture. With high efficacy options of 169 lm/W, the YHB delivers powerful, energy-efficient illumination. A standard 0-10V sensor port enables easy plug-and-play sensor integration, and an optional emergency battery backup provides added reliability. Engineered for performance, adaptability, and long-term durability, the YHB High Bay is the ideal choice for high-performance lighting in any environment.
Resources
- Die-cast aluminum housing and heatsink to optimize thermal transfer and maximize performance of the LEDs.
- Optional Micorwave sensor or PIR sensor.*
- Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Achieves efficiency levels of up to 169lm/W
- 150W & 240W replaces 250-400W MH.
- Offers standard 4000K and 5000K light modules.
- >80 CRI
- Provides even light intensity with a 120-degree lens.
- Universal voltage of 120-277VAC or 480VAC (50/60Hz)
- 0-10V dimming standard for a dimming range of 100% to 10%.
- Functions in temperatures ranging from -40°C (-40°F) to 50°C (122°F)
- All models are designed to withstand up to 6kV surge.
