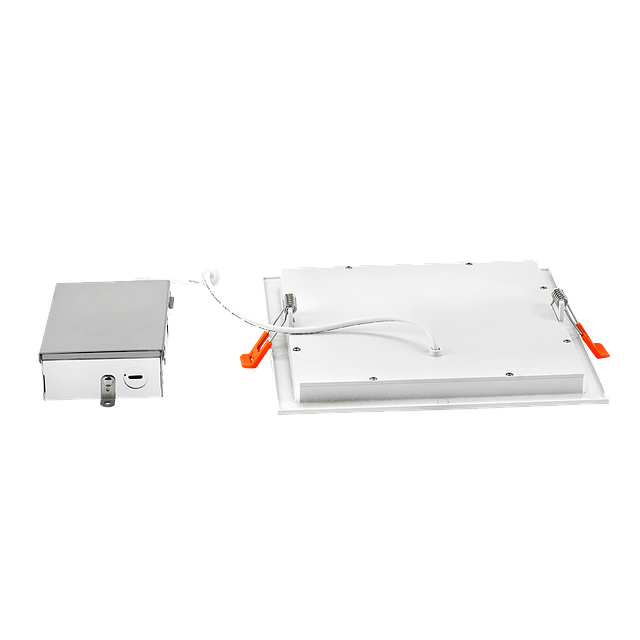

DL SP6

6" LED Square Panel / 120-277V

The 6” LED Square Panel Light, DL SP6, comprises a single trim featuring a sturdy die-cast body along with a J-Box equipped with a driver.. Our low profile design make it easy for mounting in confined ceilings or narrow spaces. Rated for IC and damp locations, this easy-to-install fixture does not require a separate housing as it can be mounted directly into the ceiling.
Specification Sheet

Resources

  • White painted Die-cast body is appropriate for heat dissipation.
  • 2 clips per-installed on unit for easy installation.
  • One light J-Box
  • Protected LED driver performs at 120V (120-277V available).
  • Dimming down to 10% with TRIAC dimmer (at 120V only).
  • CCT 3000K, 4000K, 5000K available
  • CRI 90
  • Long life LED chips guaranteed up to 50,000hours.
  • UL Listed
  • Wet locations
  • RoHS compliances
  • Tested in accordance with IESNA LM79 & LM80

Aperture

  • 6 In.

CCT

  • 3000K
  • 4000K
  • 5000K

CRI

  • 79 CRI
  • 80 CRI

Dimensions

  • H: 6 In.

Dimming Protocol

  • Triac

Dimming Range

  • 10%

Distribution

  • Narrow

Lamp Source

  • LED
  • OLED

Listings

  • UL

Lumens

  • 1030 Lm
  • 1120 Lm
  • 1125 Lm

Ratings & Compliance

  • Damp
  • IC
  • LM79
  • LM80
  • RoHS

Static LED Color

  • White

Voltage

  • 120 V
  • 120-277 V

Watts

  • 15 w
