JFPTS24

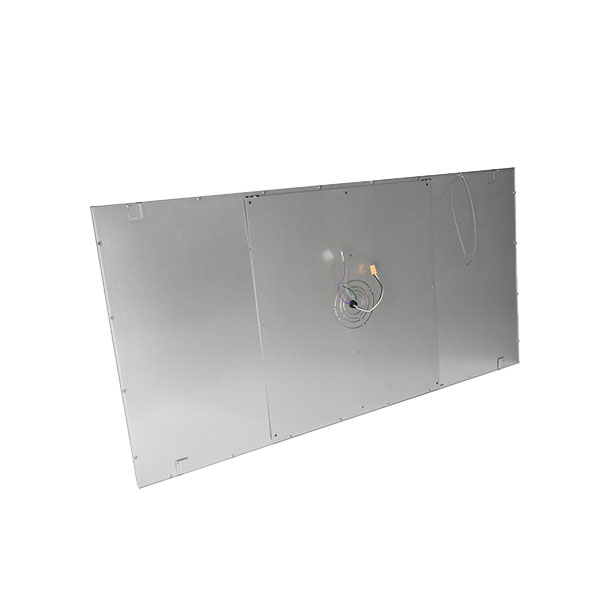

Luminoso_INDOOR_Images_0077_JFPTS24 (Back).jpgJFPTS24
LED Panel
The Luminoso JFPTS true surface panels brings an all new, modern alternative to the standard LED flat panel. The series has a solution for every application requirement, from standard to high voltage, and standard sizes (1’x4′, 2’x2′ and 2’x4′). The JFPTS is available in either 3500K, 4000K, and 5000K color temperatures with a lifespan of over 50,000 hours and energy reductions over 60%.
Resources
- Efficacy: 111-114 Lm/W
- Delivered Light Output: 5,619 – 5,700 Lumens
- Power: 50 Watts
- CRI: Ra>80
- CCT Options: 3500K, 4000K, 5000K
- Input Voltage: 120-277 VAC
- Input current: 0.27 – 0.09A
- THD:<20%(at 277V)
- Standard Warranty: 5 Year Warranty
- Standard Lifetime: Designed to L70 minimum 50,000 hours
- Installation Options: Recessed, Surface Mounted
- Power Factor: 0.9
- 0-10V dimming and step dimming available
- Recommended Dimmers: DIVA-DVTV , NOVA T NTSTV-DV , IP710-DL
- Dimensions: L 47.7” x W 23.7” x H 1.09”
CCT
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Dimming Protocol
- 0-10 V
Lamp Source
- LED
- OLED
Mounting
- Recessed
- Surface
Static LED Color
- White
Voltage
- 120-277 V
- 277 V
Watts
- 50 w
