LMT22 40W
Luminoso_INDOOR_Images_0014_LMT series.jpg
Luminoso_INDOOR_Images_0013_LMT series 2.jpgLMT22 40W

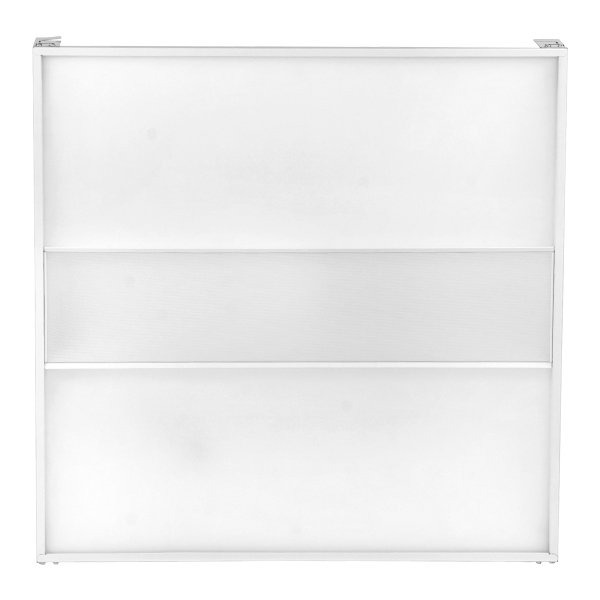

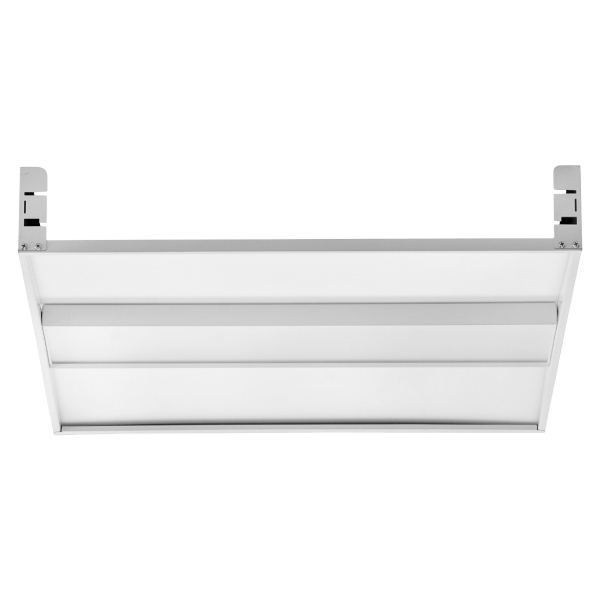

40W 2x2 LED Troffer
The LMT22 LED troffer delivers exceptional 80+ CRI light while achieving 111-116 lumens per watt. This product holds both a UL as well as a DLC listing. It is available in 3000K, 4000K and 5000K CCT options with 0-10V dimming capabilities, which makes it ideal for new construction applications or retrofitting existing fluorescent troffer fixtures with recessed installation. This versatile product covers a widespread list of applications ranging from office spaces, major retail stores, and educational settings to government, healthcare, and hospitality locations.
Resources
- Sign Current: 0.04-0.37 MA
- Efficacy: 111 – 116 Lm/W
- Power: 40 Watts
- CRI: Ra>80
- Input Voltage: 100-277 VAC
- Input current: 0.4 – 0.16A
- THD:<20%
- Standard Lifetime: Designed to L70 minimum 50,000 hours
- Installation Options: Recessed
- Dimmable: 0-10V
- CCT Options: 3000K, 4000K, 5000K
- Standard Warranty: 5 Year Warranty
- Dimensions: L 23.8” x W 23.8” x H 3.94″
- Delivered Lumens: 4,420 (30K) 4,560 (40K) / 4,650 (50K) Lumens
CCT
- 3500K
- 4000K
- 5000K
CRI
- 80 CRI
Dimming Protocol
- 0-10 V
- SPI
Dimming Range
- 50%
Lamp Source
- Fluorescent
- LED
- OLED
Listings
- UL
Mounting
- Cove
- Recessed
Ratings & Compliance
- DLC
- LM80
Voltage
- 120-277 V
Watts
- 40 w
